Controller Wireless Mechanical Keyboard Double Sided PCB
Abis Circuits Co. Ltd, established in 2006, Located in Shenzhen, our company has about 1100 workers and two PCB workshops with about 50000 square meters.
Now we have passed ISO9001, ISO14001, UL, etc., With constant hard work of our staff and ongoing support from customers both home and abroad, we can provide up to 20 layers, Blind and buried Board,
Our perfect management, advanced equipment, and professional staffs are the keys for us to fight to win more market shares with other competitors. Customer satisfaction and support are what we have been strived for.
We have two factories together, the factory in Shenzhen is specialized in small and middle volume orders and the factory in Huizhou is for big volume and HDI.
Factory: Operation plant space: (I) 10000 Square meters (II) 60000 Square meters
Employees: (I) 300 Man Powers (II) 900 Man Powers
Eng. Technical: (I) 20 QA QC Engineers (II) 60 QA, QC Engineers
PCB Capacity
| Item | Spec |
| Layers | 1~20 |
| Board Thickness | 0.1mm-8.0mm |
| Material | FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base, etc |
| Max Panel Size | 600mm×1200mm |
| Min Hole Size | 0.1mm |
| Min Line Width/Space | 3mil(0.075mm) |
| Board Outline Tolerance | 士0.10mm |
| Insulation Layer Thickness | 0.075mm--5.00mm |
| Out Layer Copper Thickness | 18um--350um |
| Drilling Hole (Mechanical) | 17um--175um |
| Finish Hole (Mechanical) | 0.10mm--6.30mm |
| Diameter Tolerance (Mechanical) | 0.05mm |
| Registration (Mechanical) | 0.075mm |
| Aspect Ratio | 16:01 |
| Solder Mask Type | LPI |
| SMT Mini. Solder Mask Width | 0.075mm |
| Mini. Solder Mask Clearance | 0.05mm |
| Plug Hole Diameter | 0.25mm--0.60mm |
| Impedance Control Tolerance | 士10% |
| Surface finish | ENIG, OSP, HASL, Chem. Tin/Sn, Flash Gold |
| Soldermask | Green/Yellow/Black/White/Red/Blue |
| Silkscreen | Red/Yellow/Black/White |
| Certificate | UL, ISO 9001, ISO14001, IATF16949 |
| Special Request | Blind hole, Gold finger, BGA, Carbon ink, peekable mask, VIP process, Edge plating, Half holes |
| Material Suppilers | Shengyi, ITEQ, Taiyo, etc. |
| Common Package | Vacuum+Carton |

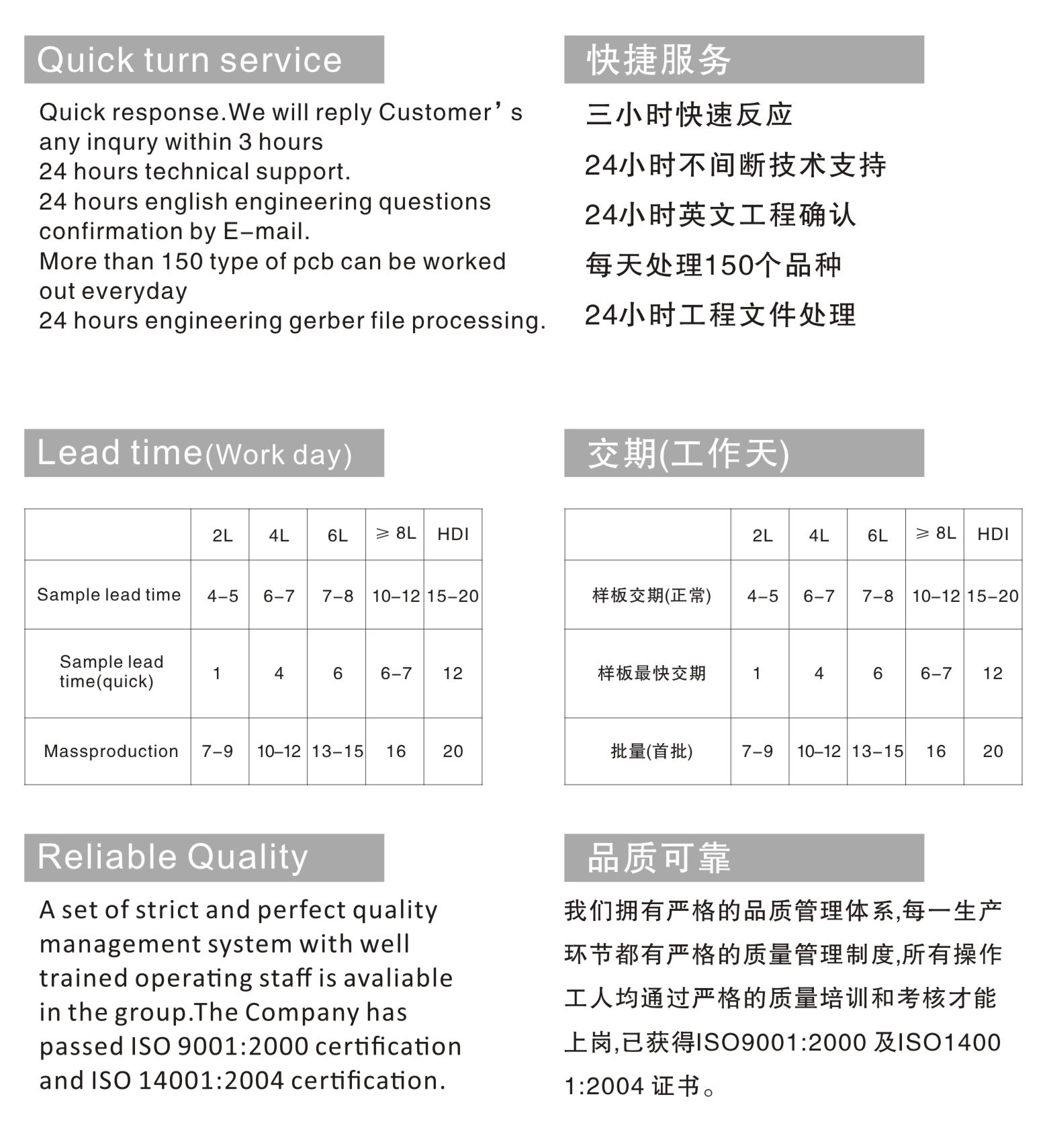

Lead Time:
| Category | Q/T Lead time | Standard Lead Time | Mass Production |
| |
| 2 Layers | 24hrs | 3-4 working days | 8-15 working days |
| |
| 4 Layers | 48hrs | 3-5 working days | 10-15 working days |
| |
| 6 Layers | 72hrs | 3-6 working days | 10-15 working days |
| |
| 8 Layers | 96hrs | 3-7 working days | 14-18 working days |
| |
| 10 Layers | 120hrs | 3-8 working days | 14-18 working days |
| |
| 12 Layers | 120hrs | 3-9 working days | 20-26 working days |
| |
| 14 Layers | 144hrs | 3-10 working days | 20-26 working days |
| |
| 16-20 Layers | Depends on the specific requirements |
| |
| 20+ Layers | Depends on the specific requirements |
FAQ:
Q1: How can I get a quotation:
. Please send gerber file with format: .PCB / .P-CAD / .DXP / .Gerber
Q2: Can you manufacture my PCBs from a picture file?
. Could you please provide a sample?
Q3: Do you have PCB in stock?
. Most of our PCB board are customized, which according to Gerber file.
. ABIS has samples in stock that could be sent to you for quality checking always.
Q4: What board manufacturer do you use for FR4?
. Main Suppliers(FR4): Kingboard (Hong Kong), NanYa (Taiwan), and Shengyi (China).
Q5: Will my PCB files be checked?
. Checked within 12 hours. Once Engineer's question and working file be approved, production will start.
Q6: What do you require in order to produce an assembly quotation?
. Bill of materials (BOM) detailing:
a), manufacturers parts numbers,
b), components suppliers' parts number (e.g. Digi-key, Mouser, RS )
c), PCBA sample photos if possible.
d), Quantity
ABIS cares every your order even 1 piece
